How to configure the SSL Server

Step 1: Login to the Tacitine. (If you are configuring the Tacitine for the first time, the default Lan IP is https://192.168.100.1:4433)and default username: admin & Password: admin99

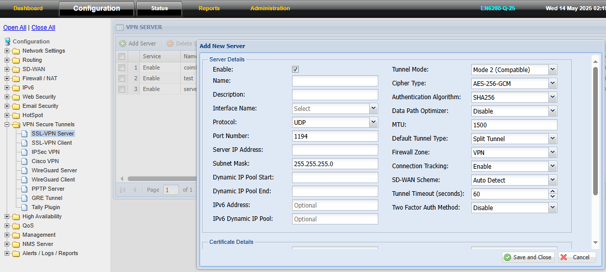

Step 2: Click the Configuration > VPN > SSL-VPN Server > Add > enable the services Provide the descriptions

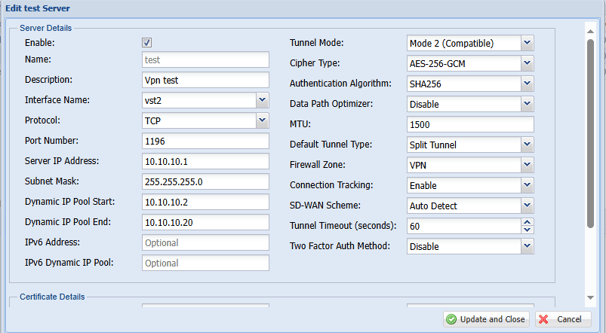

Step 3: Mention the interface name for e.g.: VST1

Step 4: Select the protocol where the VPN access via UDP /TCP and provide the port number For Eg default port number 1196

Step 5: Provide the server IP and subnet mask and dynamic start IP and end IP
Note: it should be different from your local IP is given like 10.10.10.1 or 60.60.60.1

Step 6: Select the Cipher Type default use: AES-128-CBC

Step 7: Select the Authentication algorithm Default: SHA1

Step 8: Mention the MTU value Default value: 1500

Step 9: Select tunnel Type default value: split type (it only sends the VPN traffic to Firewall) Full tunnel (all traffic send it through to Firewall)

Step10: enter all certificate details like email, country, etc and organization name

Step 11: Click Save > Restart Services

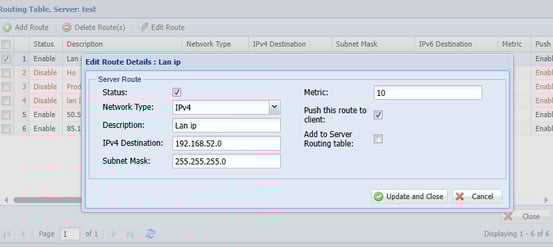

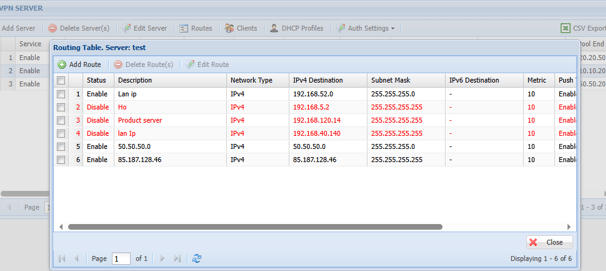

Step 12: Select the Create the Server and Click the Router > Add Route

Step 13: Mention the Description and Destination IP (Network IP and subnet mask) Note: this Lan IP address of the firewall to access through VPN Client

Step 14: Select the Push this route to the client

Step 15: Click Update and Close

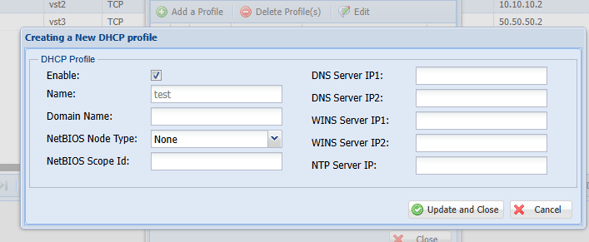

Step 16: Select the Create the Server And Click the DHCP Profile

Step 17: Mention the Name of the Profile

Step18: Click Update and Close

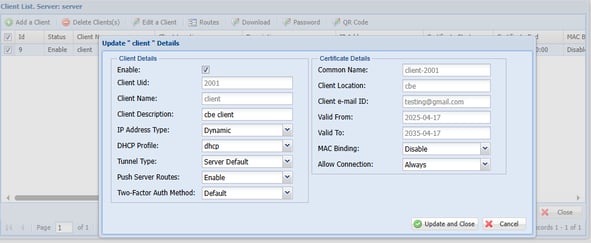

Step 19: Select the Create the Server and Click the Clients > Add client

Step 20: Mention the Client Name Address type: Default and select DHCP Profile and tunnel Type make it as server Default

Step 21: Mention the Certificate details like location, email id and Save

Step 22: Click Update and Close

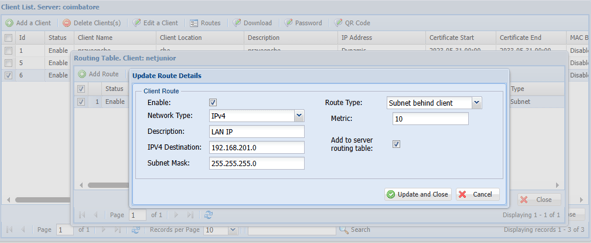

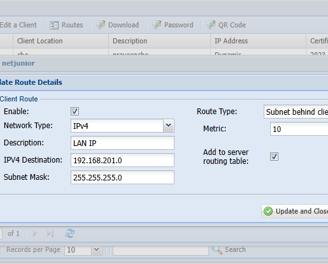

Step 23: Select the Create the Client and Click the Route > Add Route

Step 24: Mention the Description and Destination IP (Network IP and subnet mask) Note: this Lan IP address of the Branch firewall to access through VPN Client

Step 25: Select the Route Type subnet behind Client and Select Add server routing table

Step 26: Click Update and Close
